Type 4600 with Shut Down Seal
Type 4600 with Shut Down Seal
| Item | Description |
| 1 | Seal face |
| 2 | Mating ring |
| 3 | Collar |
| 4 | Face housing |
| 5 | Clamping ring |
| 6 | Springs |
| 7 | Housing |
| 8 | Gasket |
| 9 | Cover |
| 10 | Back-up ring |
| 11 | Shut down seal |
| 12 | Flange |

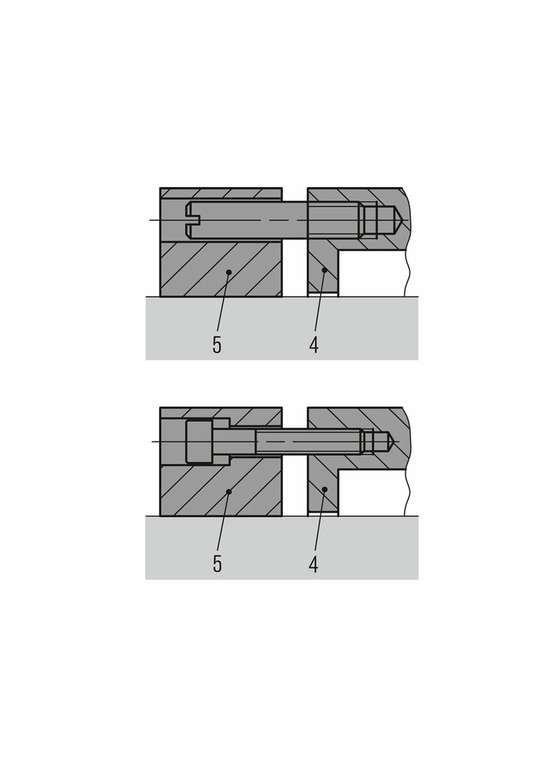

Clamp ring
Type 4600 with Shut Down Seal
Features
The water-lubricated stern tube seals type 4600 from EagleBurgmann are not alone an environment-friendly solution. They meet all technical requirements of modern sealing technology: modular design, convenient installation, little maintenance, no adjustments. Applying a shut down seal eliminates costly and time-consuming dry-docking. Maintenance and repairs can be performed with vessel afloat.
Type 4600 water-lubricated stern tube seals are virtually leak-free and are leaving no oil or grease residues in the waterway. And because they prevent getting water into the bilge, no elaborate actions are required for its disposal.
Please ask us for references.
Type 4600 water-lubricated stern tube seals are virtually leak-free and are leaving no oil or grease residues in the waterway. And because they prevent getting water into the bilge, no elaborate actions are required for its disposal.
Please ask us for references.
Advantages
- With shut down seal
- Water-lubricted
- No oil or grease emissions to the environment
- Low power consumption
- Carbon seal face unsplit for first installation, split for repairs
- Version with split mating ring available
Materials
Seal face:
Carbon graphite antimony impregnated (A),
Carbon graphite resin impregnated (B)
Mating ring: Special cast CrNiMo steel (S) / 1.4462
Collar, shut down seal:
Nitrile-butadiene rubber (P)
Springs: Hastelloy® C-4 (M) /1.4401
Gasket: Burasil® (Y)
Metal parts: 1.4571 / Bronze
Carbon graphite resin impregnated (B)
Mating ring: Special cast CrNiMo steel (S) / 1.4462
Collar, shut down seal:
Nitrile-butadiene rubber (P)
Springs: Hastelloy® C-4 (M) /1.4401
Gasket: Burasil® (Y)
Metal parts: 1.4571 / Bronze
Recommended applications
- Shipbuilding
- Sea water
- Fresh water
Notes
Special designs available:
- Split mating ring
- Amagnetic properties
- Shock resistance
